Specifications
Height
15.6 cm
Length
55 cm
Width
17.2 cm
Weight
2 kg
Colour
Green
Technical Comments
Please see Fargro code DOSGLPP for the portable package
About

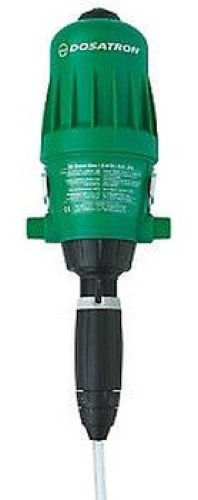

Installed directly in the water supply line, the system operates without electricity, instead using the flow of water as the power source. The water activates the Dosatron, which takes up the required percentage of concentrate directly from the container and injects it into the water. Inside the dispenser, the concentrate is mixed with the water, and the water pressure forces the solution downstream.
The dose of concentrate will be directly proportional to the volume of water entering the Dosatron, regardless of variations in flow or pressure, which may occur in the main line.
Dosage rate - 0.2% - 2%
Flow rate lt/h - 10-3000
Operating pressure bar - 0.3-6 (4.3-85 psi)
¾" BSP male threaded connection
Max temp - 40°C
